Madrona New Construction HardiePanel Siding, Soffit, Windows & Door Installation

This Madrona, Seattle, WA project was built as a complete exterior case study, not just another list of siding materials. KV Construction looked at the house as a full wall system: what had to come off, what had to be checked behind the old siding, how water would be managed around windows and doors, and how the finished exterior should feel in its local setting.

Madrona projects have a different rhythm than a standard replacement because the exterior package has to line up with the builder’s schedule, window openings, trim layout, and final weatherproofing sequence. With Seattle rain never far away, the order of installation matters before the wall system is closed.

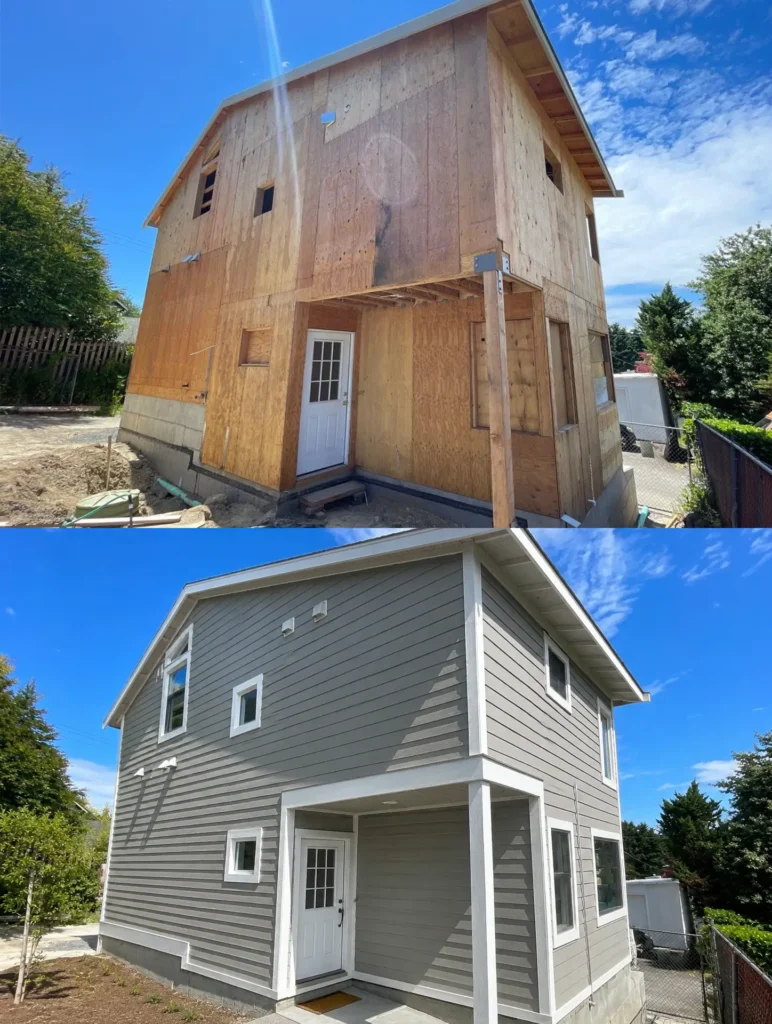

The core installation centered on James Hardie panels with James Hardie 1×3 battens every 16 inches. HardiePanels with 1×3 battens gave the new construction exterior a clean vertical rhythm while the integrated window and door installation helped keep the envelope details consistent. The work also included builder coordination, HardiePanel siding, HardieSoffit, 19 windows, and one door, which made the project more layered than a standard siding replacement and gave the final result a stronger sense of place.

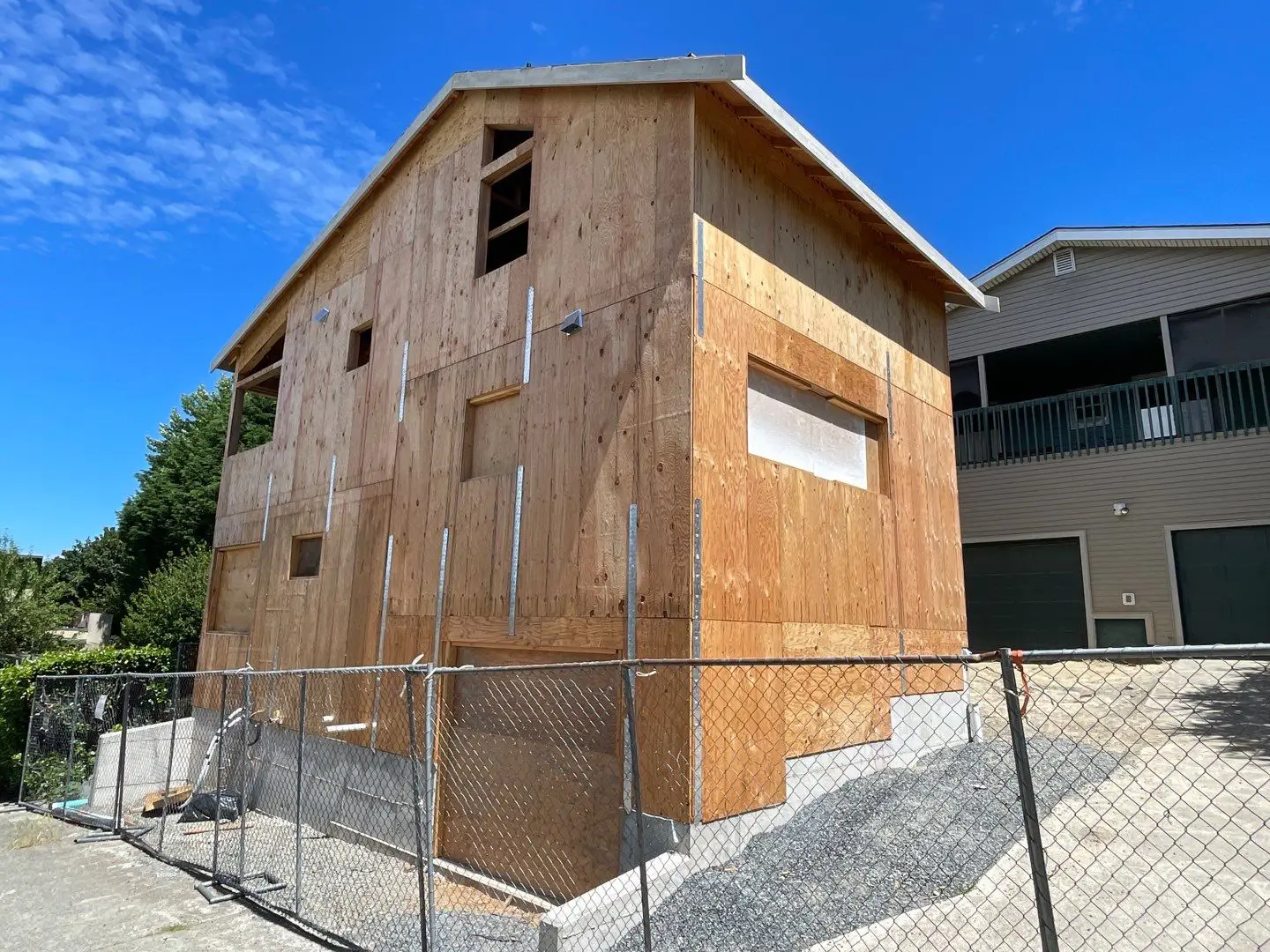

Coordinating the Exterior Before the Building Was Closed In

Because this was a new construction scope, KV Construction coordinated the siding sequence around the builder’s schedule, framed openings, trim layout, and weather barrier. That matters in Seattle and the broader PNW because the best time to protect the wall assembly is before small sequencing issues become hidden behind finished siding.

Weather Barrier, Flashing, and Rain Control

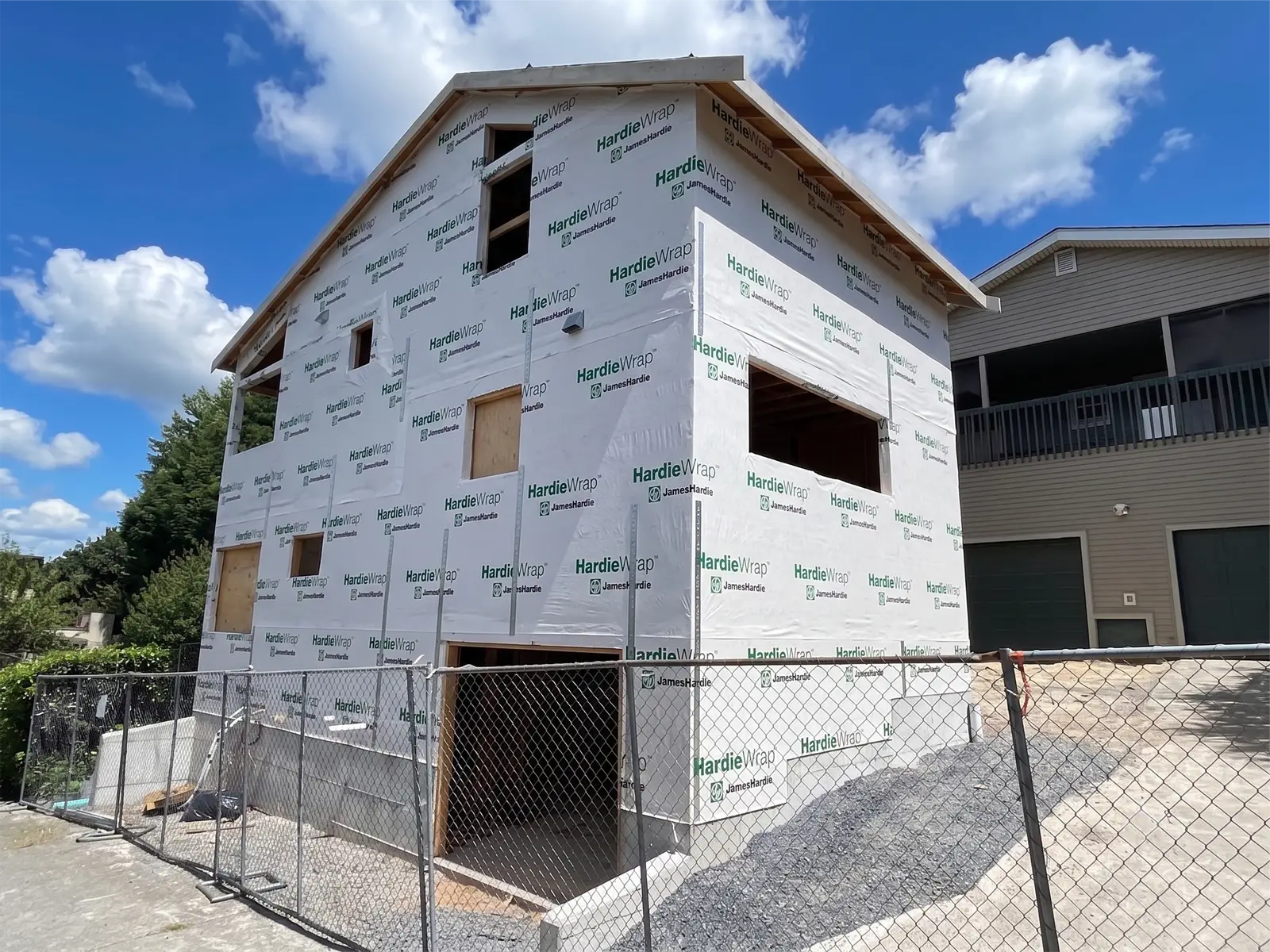

Pacific Northwest siding work has to respect water. On this project, the weather barrier was HardieWrap paper. Flashing details included 4-inch HardieFlash tape around windows. HardieWrap, seam tape, and detailed flashing created the water-management layer behind the siding, which is the part homeowners rarely see but rely on every winter. QUAD MAX sealant was used at key transitions so trim, blocks, windows, doors, and siding could work together instead of becoming separate weak points.

Material Choices That Fit the Home

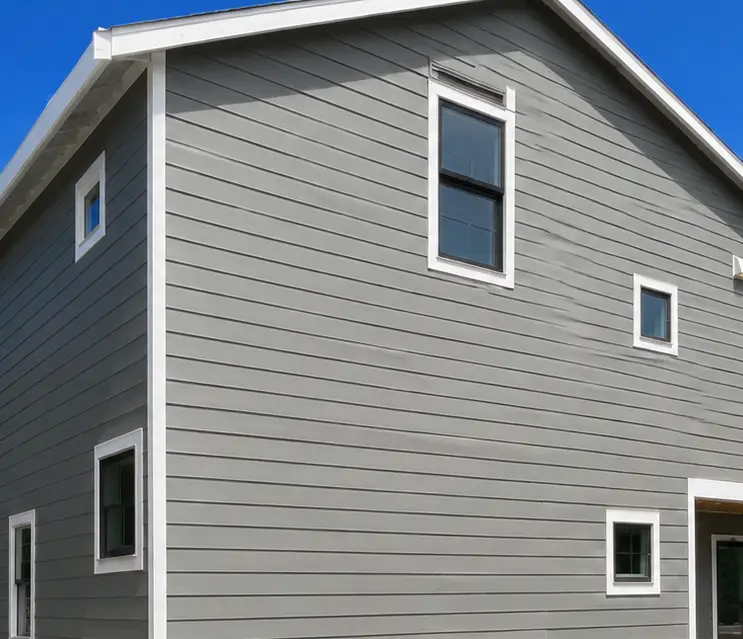

The main siding choice was James Hardie panels with James Hardie 1×3 battens every 16 inches. KV Construction paired that with James Hardie 5/4×4 window trim with Hardie 1×4 and 1×3 outside corners. This is where a case study becomes more than a materials list: the profile, reveal, texture, trim depth, and finish all influence how the home reads from the street and how well the edges are protected.

Details That Made This Project More Complete

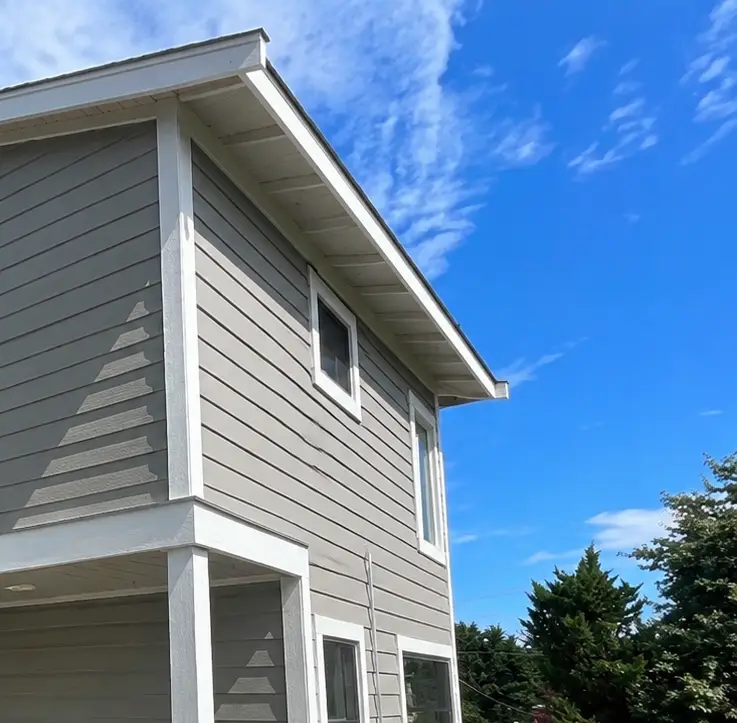

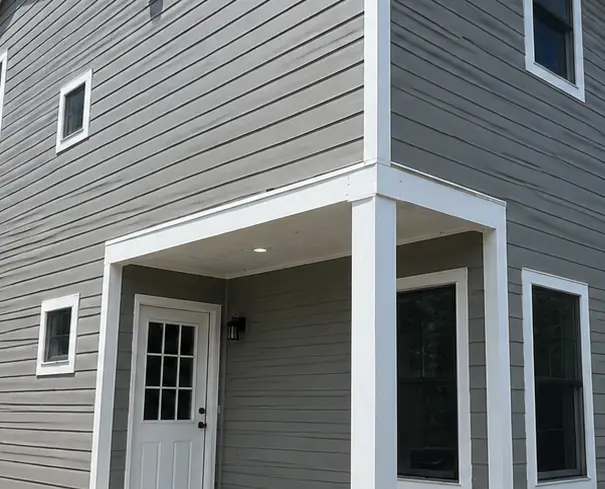

Several project details shaped the final result: HardieSoffit panels on eaves with 5/16 primed Tamlyn channels at seams; 19 windows and 1 door installed; New construction; no old siding tear-off. These items matter because siding replacement often exposes the places where older exteriors were weakest: soffits, corners, window transitions, door openings, insulation gaps, or paint systems that no longer protect the home well.

Outcome and Homeowner Value

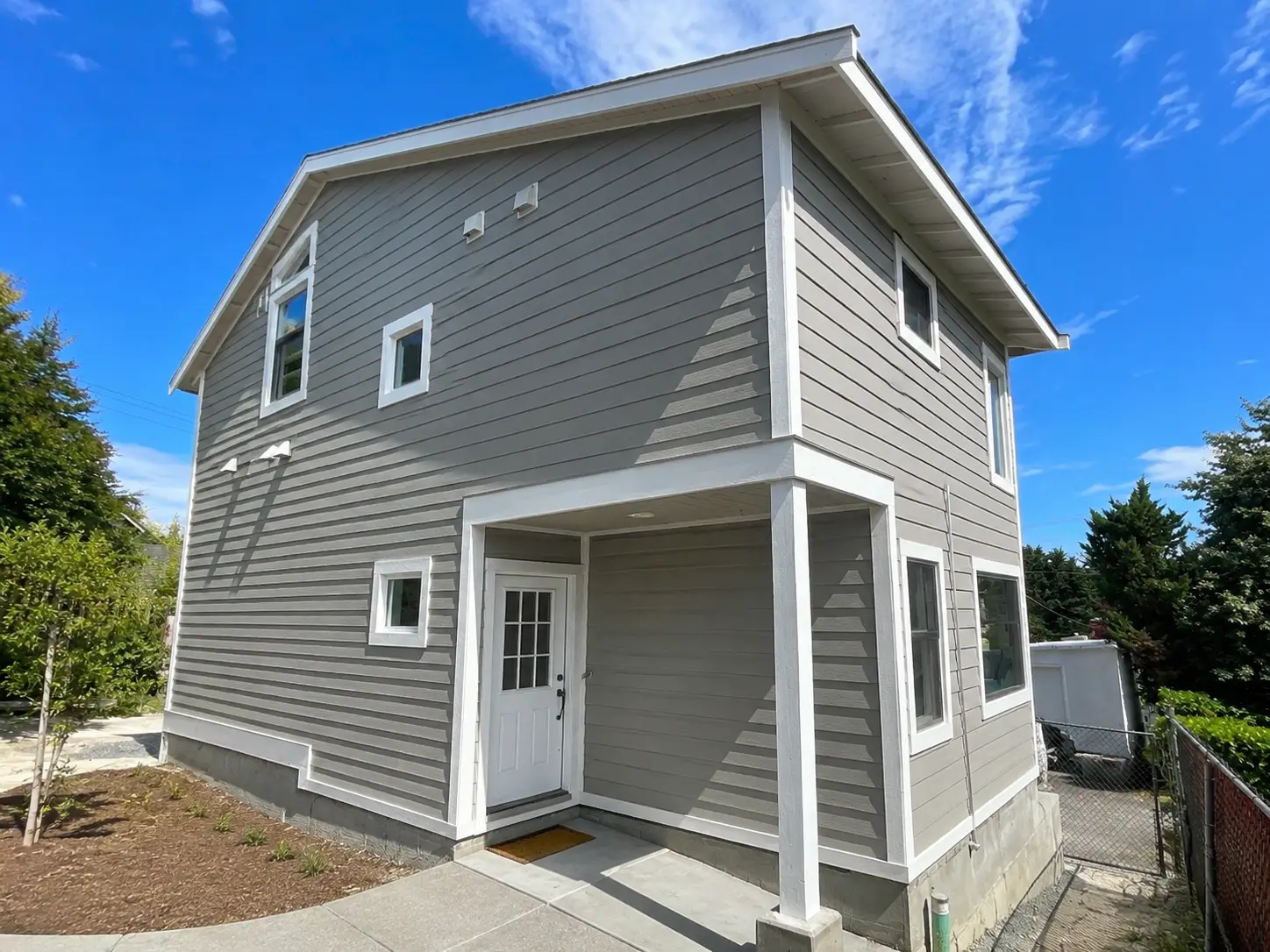

The finished project gives the home a more complete exterior system, with the visible siding, trim, soffit, window/door details, and hidden water-management layers all tied into one scope. The result is the kind of project KV Construction wants to be known for: practical, well-organized, and built around a full siding replacement mindset suited to Seattle-area and Pacific Northwest weather.

Project Specifications And Materials
